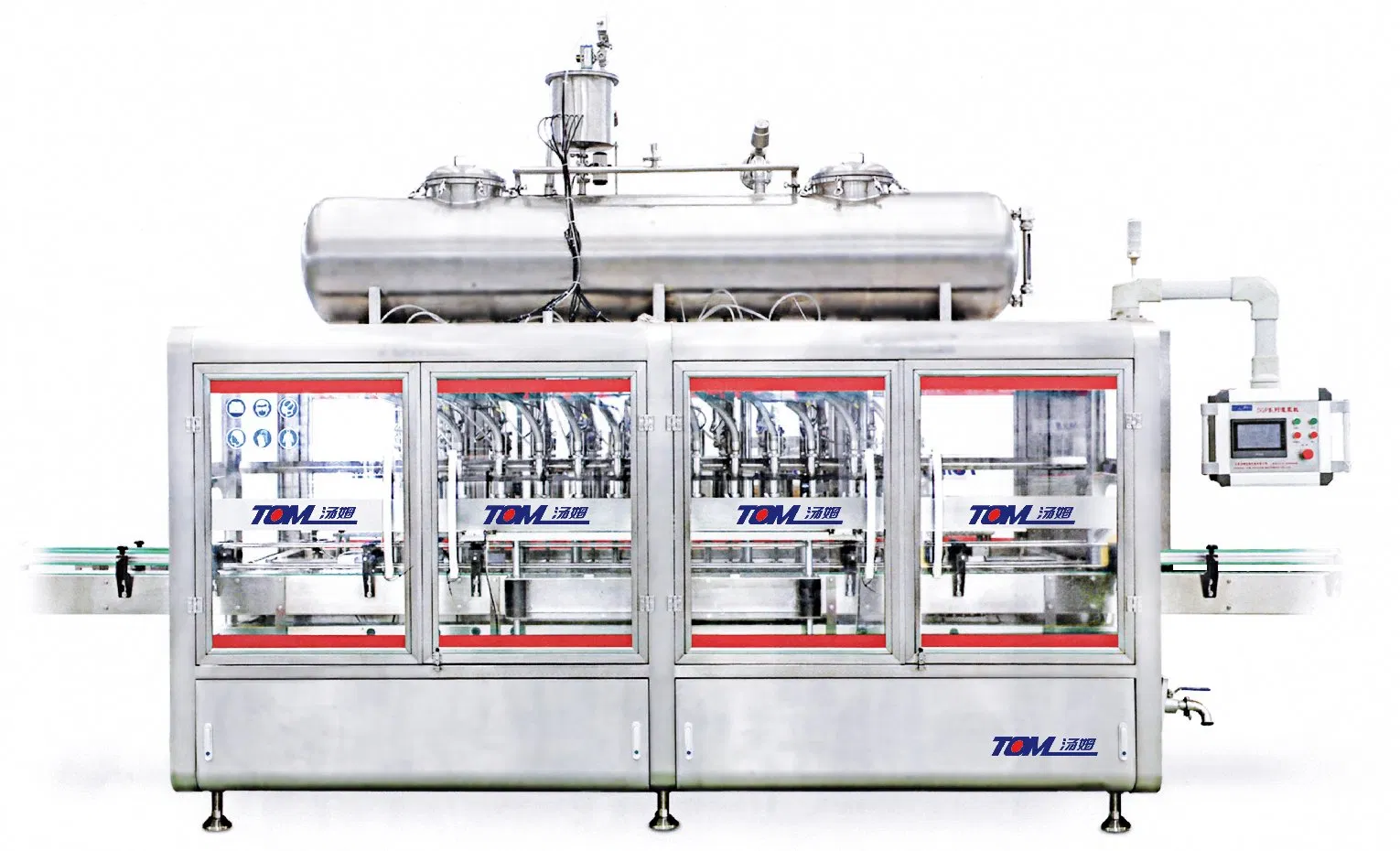

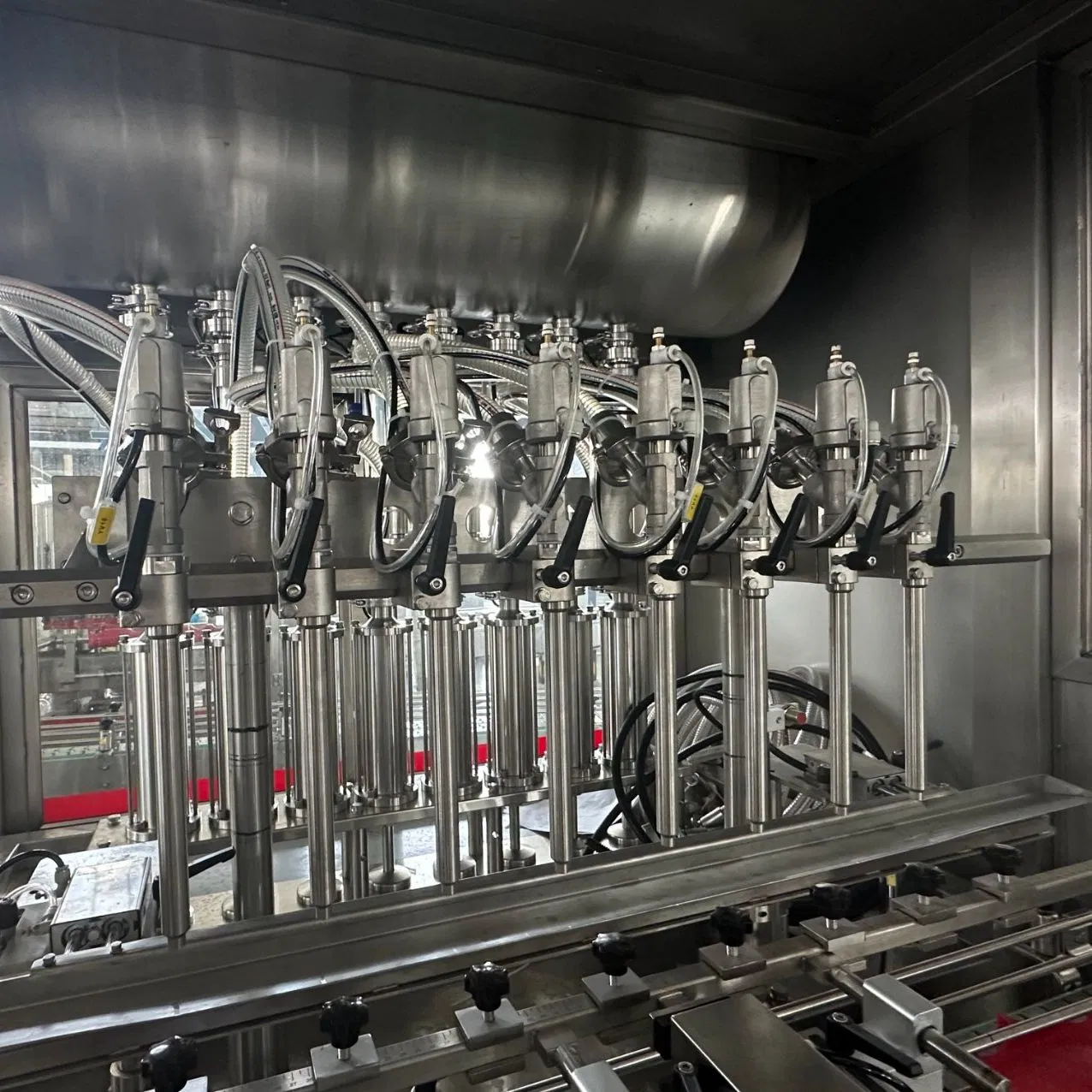

GZH-LA Piston intelligent filling machine(1-5L)
---6/8/10/12/16 filling heads
Our 10-100ml high speed filling machine, designed to streamline your production process and increase efficiency. This advanced machine is perfect for filling a wide range of products quickly and accurately. With its high-speed capabilities, you can meet the demands of your customers without sacrificing quality. Whether you are in the pharmaceutical, cosmetic, food, or beverage industry, this filling machine is versatile and can handle various types of liquids with ease. Say goodbye to manual filling and hello to precision and consistency with our top-of-the-line filling machine. Upgrade your production line today with this reliable and efficient equipment.
Main features:
8 heads 2000 bottles/hour (5L bottles)
10 heads 2400 bottles/hour (5L bottles)
12 heads 3000 bottles/hour (5L bottles)
| Size range: |
Diameter 20-60mm |
| Label height: |
(30-90) mm, length: (40-140) mm |
| Production capacity: |
≤ 12000 bottles/hour |
| Labeling accuracy: |
± 1mm |
Applicable Bottle Type:
Diameter : 20-60mm
Height : 50-150mm
Main configuration:
- Cleaner: one key decylinder is easy to clean, and there is an automatic cycle cleaning device inside
- More intelligent: online weighing feedback real-time correction system, dose automatic completion, convenient and fast
- The front and rear conveyor belts are equipped with coordinated optoelectronics to reduce manual intervention
- Faster: Quick connection without tools
Main parameters:
| Power supply: |
AC380V, 50/60HZ |
| Whole line power : |
About 48KW |
| Air pressure: |
(0.6-0.7) MPa, dry, clean and stable gas source, single line gas consumption of about 0.9m ³/ min |
Main Parameters:
8 heads 2000 bottles/hour (5L bottles)
10 heads 2400 bottles/hour (5L bottles)
12 heads 3000 bottles/hour (5L bottles)
Filling specification :1-5L
Filling accuracy :≤±4g

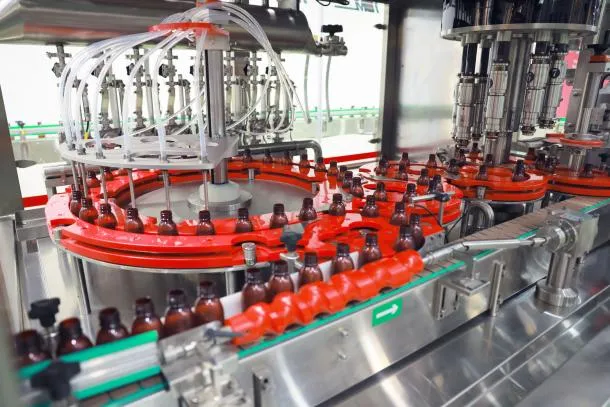

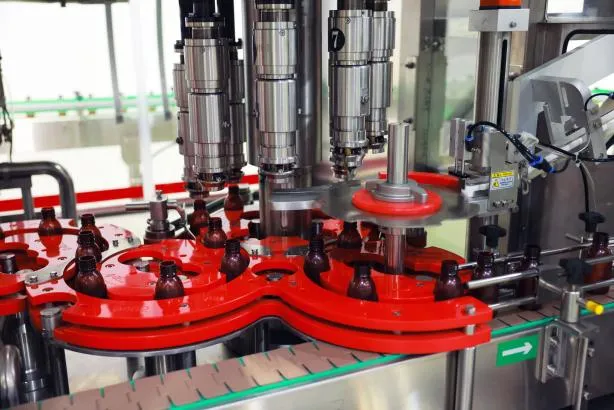

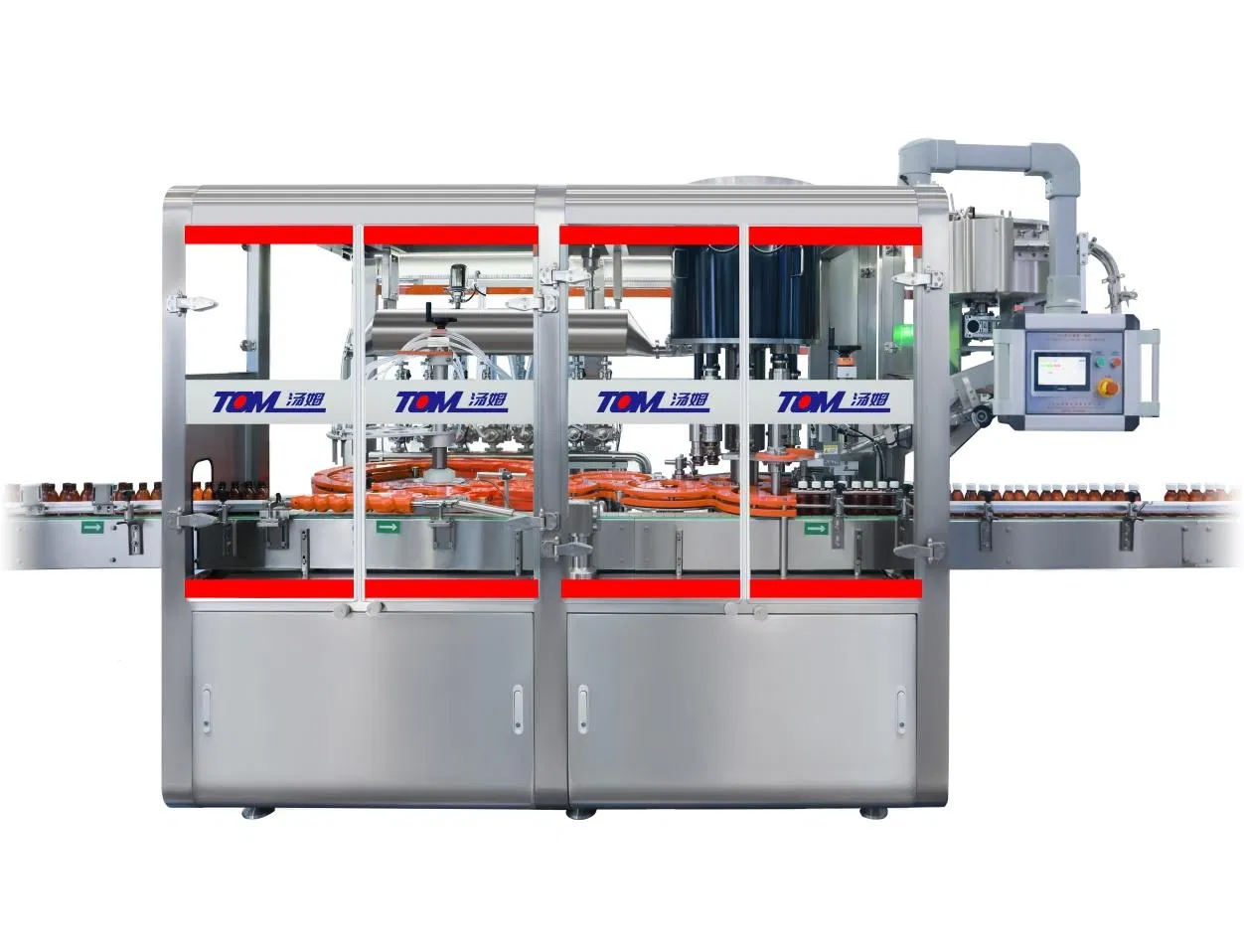

GXXC-16-12 Intelligent Rotary Tracking Filling and Capping Integrated Machine
| Applicable bottle type: |
Diameter 20-60mm |
| Height: |
50-150mm |
| Production capacity: |
10-100ml ≤ 12000 bottles/hour |

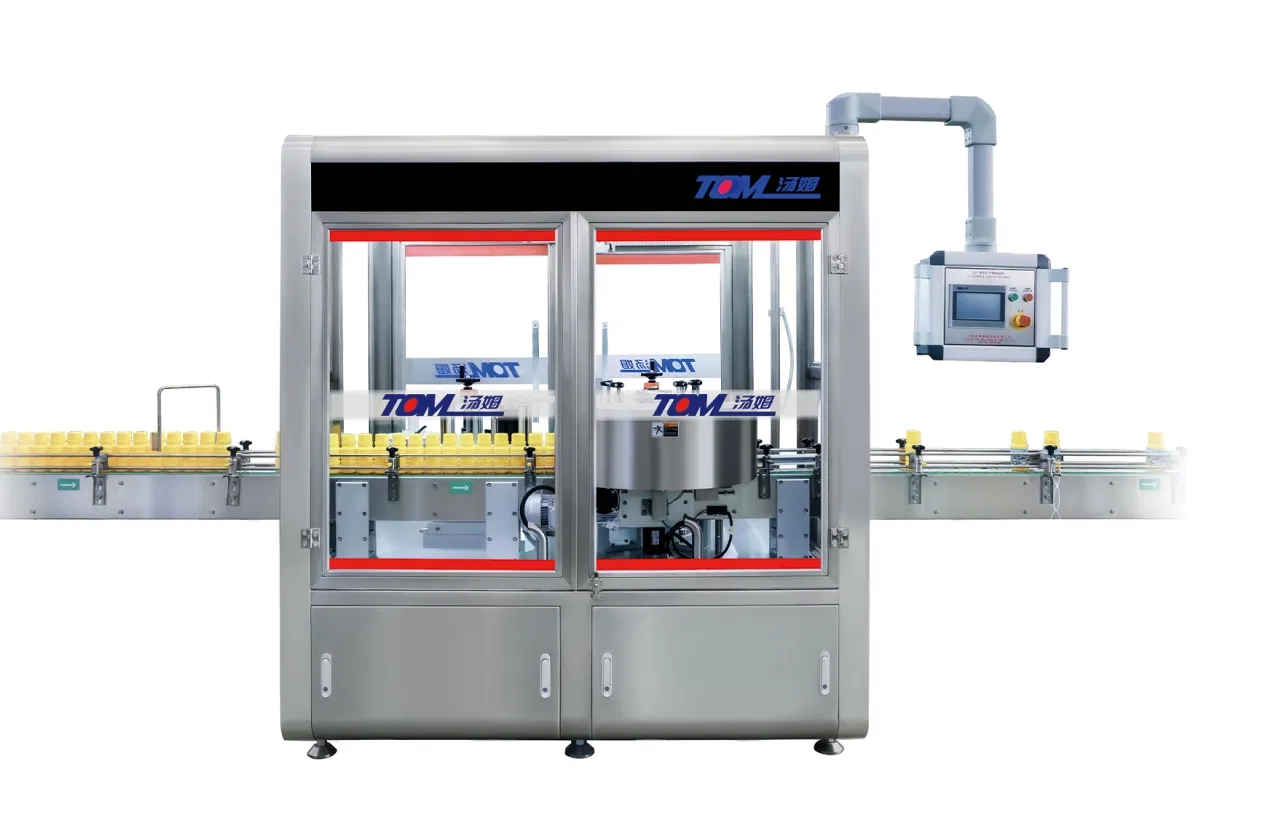

TBJ-10Y-A Intelligent Labeling Machine
| Size range: |
Diameter 20-60mm |
| Label height: |
30-90mm |
| Length: |
40-140mm |
| Production capacity: |
≤ 12000 bottles/hour |
| Labeling accuracy: |
± 1mm |

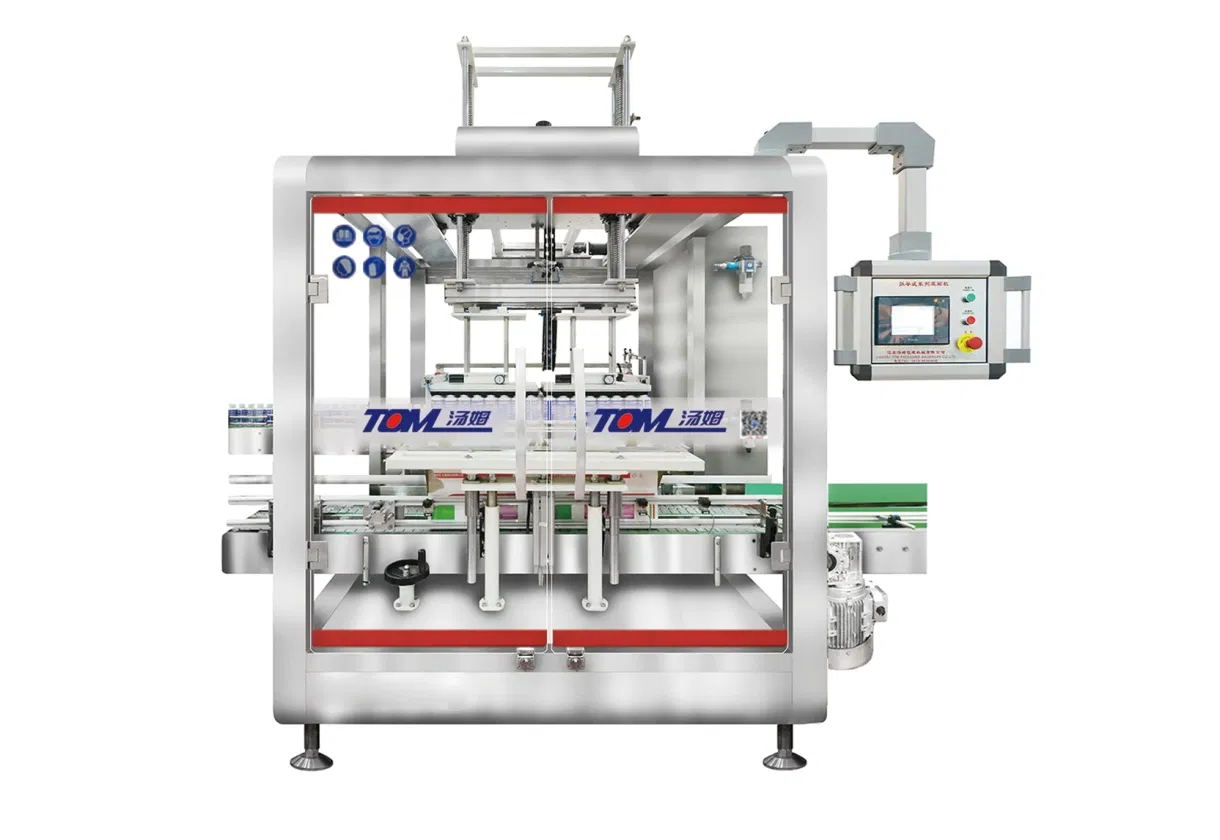

ZZP-2NA Automatic case packer:
| Applicable bottle type: |
Diameter 20-60mm |
| Applicable bottle Height: |
50-150mm |
| Carton length: |
300-500mm |
| Carton width: |
200-400mm |
| Carton Height : |
100-300mm |
| Carton capacity: |
6-8 boxes/min |

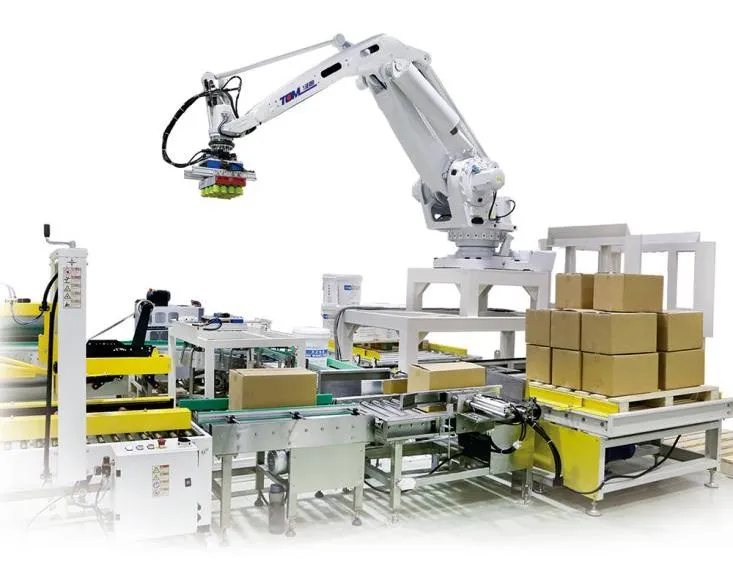

Robot palletizer
| Maximum payload: |
20Kg |
| Capacity: |
4-8 boxes/min |
| Working radius: |
1600mm |
| Vertical distance: |
2100mm |

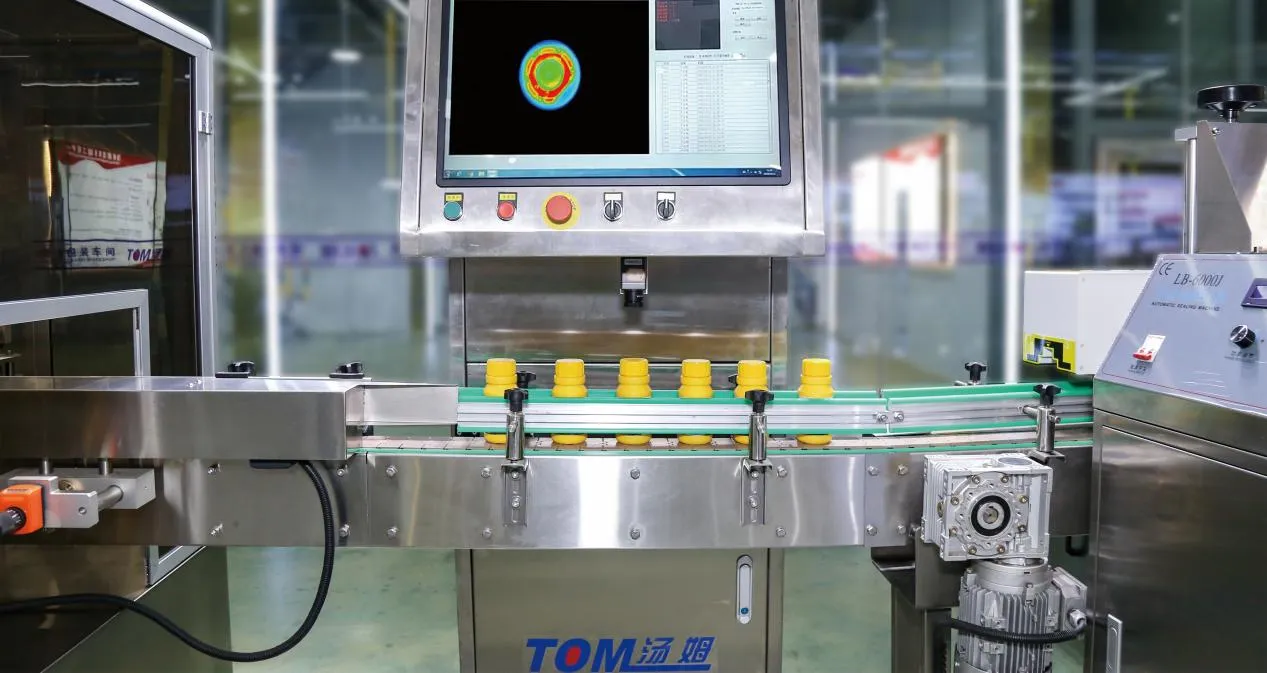

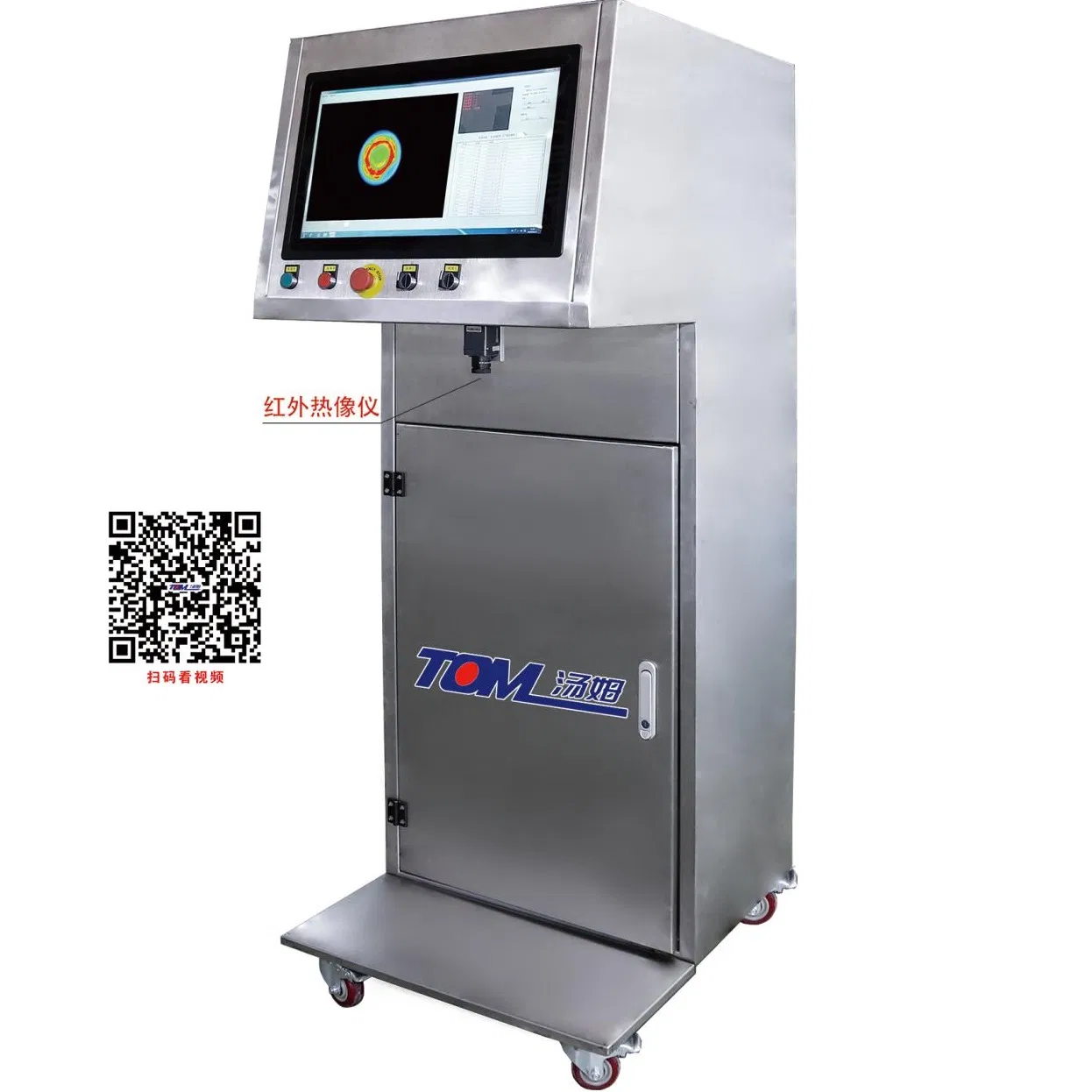

Aluminum foil leak detection machine
Main function:
Detecting aluminum foil sealing quality and rejecting the unqualified

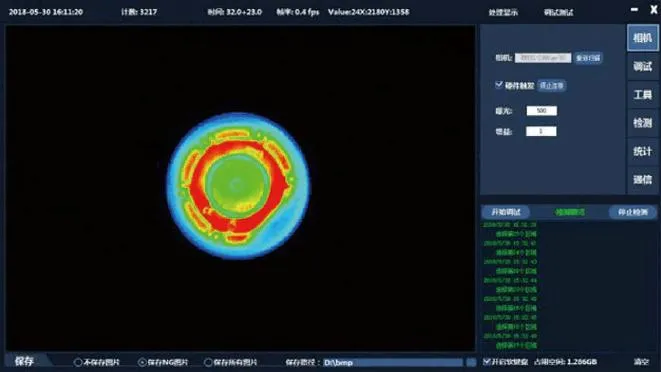

In the automatic production line, the workpiece sealed by heat or electromagnetic induction is transported to the infrared thermal image detection station, and the infrared thermal image camera takes the thermal image of the hot-sealed bottle cap, and the thermal image is transmitted to the image high-speed processing system for calculation and recognition. Through statistical analysis of the temperature distribution model of the thermal image of the aluminum foil after sealing, the sealing quality is judged to be qualified or unqualified, and the unqualified product is removed to the unqualified product area, and the qualified product will be transported to the next process.

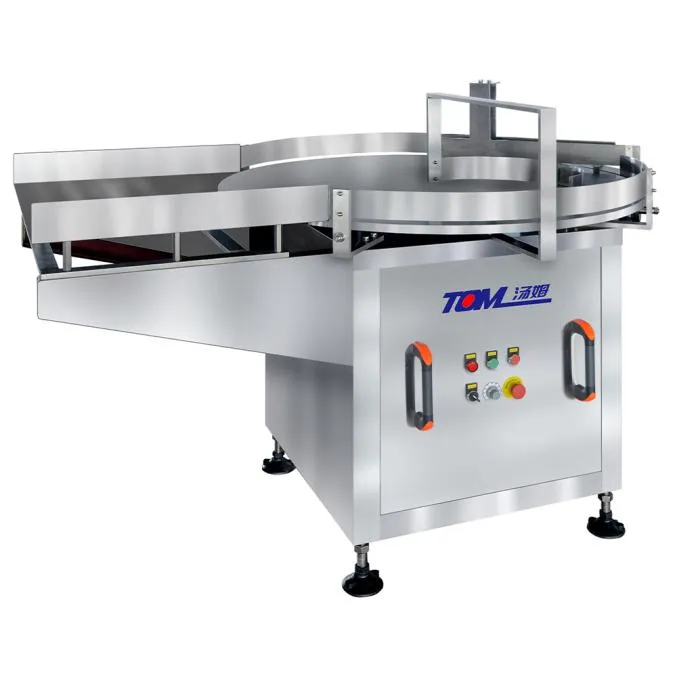

Intelligent workstation type bottle sorting machine
(Mechanical fallen bottle removal)
Applicable bottle type: diameter 20-60mm
Height : 50-150mm
Production Capacity : ≤ 12000 bottles/hour
Jiangsu Tom Group is a full-service provider specializing in the research and development, design, and production of intelligent filling equipment. Since entering the intelligent filling industry in 1998, we have been dedicated to providing customers with exquisite engineering design, generations of advanced intelligent filling lines, warehousing and logistics software engineering, EPCM projects, and smart factories.
What we can do ?
· Agrochemicals packaging machines
· Household & personal care packaging machines
· Edible oil ,sauces & condiment packaging machines
· Petrochemcials packaging machine
· Coating ,paint packaging machines
· Intelligent packaging of chemical new materials
·Pesticide Formulations Engineering (EPC/EPCM )
As of now, Tom has served more than 4000 domestic customers and over 600 foreign customers. Its excellent performance and comprehensive after-sales service system have received unanimous praise from a large number of users. CNOOC, Luxi Chemical, China Resources Group, Shanxi Coking Coal Group, CNOOC Grain and Oil, Wanhua Chemical, Tianci, Wengfu, Roche, Jingbo, Kingenta, Stanley, Shanghai Dalian, Jiangsu Longpan, Jiangsu Gaoke, Idemitsu, Castro, Bayer, Red Sun, Wynca Chemical, Rainbow Chemical, Yinghui, Noposin, Lier, Meibang, Jiangshan Chemical, Libai, Blue Moon, Unilever, Zhuangchen, Qiqiang, Cnnice, Longrich, Reckitt, Liangmianzhen, Likang Medical, Swiss Sika, Oriental Yuhong, 3 trees, Hempel, Jordan Coatings. Nippon Paint, PPG, Asia-paint, Keshun, Lee Kum Kee, Yaomazi, Yihai Kerry, Longda, Luhua and other famous domestic and foreign enterprises have become strategic partners of Tom.
